Hexagon Pits

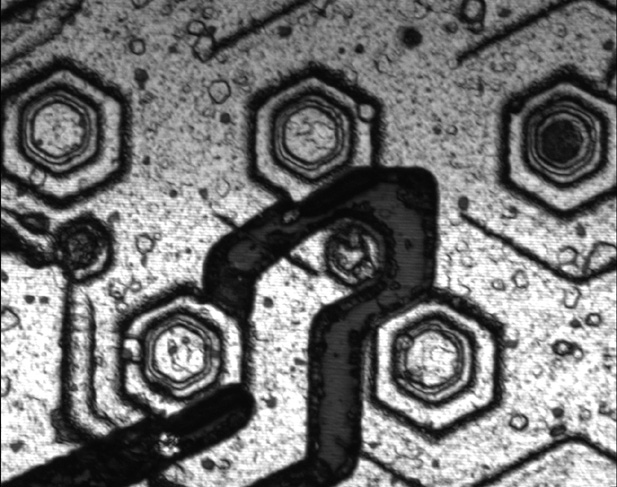

Figure 1 - Full-Focus Composite: This sample was imaged with an air objective under standard halogen lighting. (Scroll for additional images of this sample.)
Figure 2 - Depth Colored: Depth information has been added to the image above through color with red corresponding to the higher points and blue the lower. This depth information provides layer separation crucial in circuit analysis. (Scroll for additional images of this sample.)
Figure 3 - Contour Enhancement: The topography above is further enhanced through this caricature of the data. Depth has been quantized and assigned unique colors for more precise depth analysis. (The color distribution in this image has been reversed - blue is high and red is low.) (Scroll for additional images of this sample.)

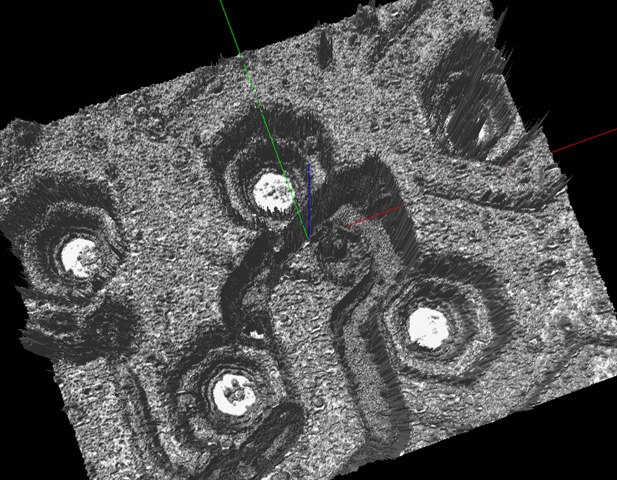

Figure 4 - SurfaceScope Capture: This 3D model allows rotation and tilting of the sample. (Scroll for additional images of this sample.)
